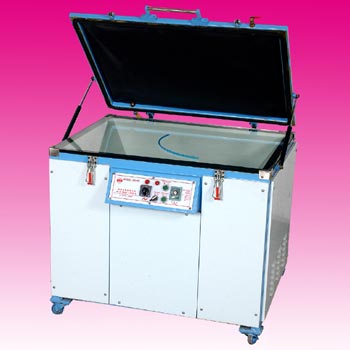

STK10A Series Exposure Cabinet
| Feature |
|
Vacuum suction is applied to make the film surface and screen frame tightly attached to each other during exposure, which makes your exposure perfect
Equipped with UV lamp which can effectively reduce exposure time
Timing switch is available for automatic switching off the lamps in order to avoid over-exposure
Besides the standard sizes available as followings, we can also make to any sizes as you wish |
| |
| Specifications |
Model No.
|
STK10A1-PH
|
STK10A2-PH
|
Description
|
20"x30" Automatic screen exposure cabinet with UV lamps
|
30"x40" Automatic screen exposure cabinet with UV lamps
|
Max. frame size
|
330mm x 580mm
|
580mm x 830mm
|
No. of UV lamps
|
380v 2000W x 1 pcs
|
380v 2000W x 1 pcs
|
Power
|
380v 3 phase
|
380v 3 phase
|
Machine dimension
|
680mm x 840mm x 880mm
|
910mm x 1080mm x 880mm
|
Packing measurement
|
860mm x 1020mm x 1120mm
|
1090mm x 1260mm x 1120mm
|
Net weight
|
117kg
|
158kg
|
Gross weight
|
174kg
|
238kg
|
Model No.
|
STK10A3-PH
|
STK10A4-PH
|
Description
|
40"x50" Automatic screen exposure cabinet with UV lamps
|
50"x60" Automatic screen exposure cabinet with UV lamps
|
Max. frame size
|
830mm x 1070mm
|
1070mm x 1320mm
|
No. of UV lamps
|
380v 2000W x 1 pcs
|
380v 2000W x 1 pcs
|
Power
|
380v 3 phase
|
380v 3 phase
|
Machine dimension
|
1140mm x 1330mm x 880mm
|
1420mm x 1600mm x 880mm
|
Packing measurement
|
1320mm x 1510mm x 1120mm
|
1600mm x 1780mm x 1120mm
|
Net weight
|
209kg
|
289kg
|
Gross weight
|
314kg
|
427kg | | |
| |
|
